Asiair PRO remote controlling
in Articoli il 21 Luglio 2022, 12:34









My astrophotography gear is actually set up as follow:
Mount : Skywatcher EQM35 Pro Synscan goto
Scope : William Optics Redcat 51
Main camera : ZWO ASI1600MM-Cool pro
Guidescope : QHY miniscope 30/130
Guide camera : ZWO ASI 120mm mini
Filter Wheel : ZWO AFW 8×1,25? (LRGBHSO by Astronomic, 8th place actually empty)
Focuser : ZWO EF with ProAstroGear Blackcat adaptator (excellent!!!)
WiFi : ZWO WiFi Extender for ASIAIR Pro

Power



All astrophotography setup power is cabled to electric line by a TP-Link Tapo P100 mini Smart Wi-fi socket thus to start asiair pro and powering all astrophotography gear by remote control.
Between domestic line to Tapo Wi-Fi socket a Tecnoware UPS ERA PLUS 750 is placed to grant stability of electric line flux and proper protection against black-out.

Asiair pro provides to supply main camera, EQM35 mount and wifi-extender.




ASIAIR pro USB3 ports get ASI 1600 main camera and 128gb USB stick.
Asiair pro USB2 ports get EFW and EQM35 plug.
ASI 1600 Main camera usb hub provides to supply asi 120 mini guide and asi focuser.




Wi-Fi lines



Home observatory Whireless line is provided by my domestic Huawei B311-211 Router 4g Wireless LTE with a standard (actually Iliad) sim.
ZWO wifi extender is set-up to extend Huawei Whireless line.



Asiair Pro is set up in station mode linking at Huawei wifi line.



Remote controlling



A domestic smart-tv Windows 10 mini pc Bmax B2 (128gb/8gb) is adapted for remote operation and ASIAIR pro controlling by running :

— VNC server for remote control

— Bluestacks Android simulator with asiair pro app installed

Other solution I've red and experimented, red and not experimented.
Some of them probably could better fit to remote controlling of ASIAIR pro “grounded” or not Astrophotography gear, especially Astroberry – from which I came , stellarmate or Primaluce system.
Moreover I'm not happy at all to had switched from an open source grounded systems to windowz stuff, but I sincerely admit that imo this is the most stable, regular and trustable system I have had under my hands.

Further development
I wish to implement further development as for instance

1) Remote controlled telescope dust-cover to be opened / closed on demand.
Best if provided of Flattener panel, thus to create optimized dark/flat calibration files for best performance in post-production.
Thinking about WO REDCAT 51 FLAP PANEL (FP1) by Deepskydad.com:



2) A better video surveillance and anti-thief system to be developed into my domestic security system.

3) Windowz mini pc formatting for at least an Ubuntu...


0 commenti, 14576 visite - Leggi/Rispondi

Asiair PRO remote controlling
in Tema Libero il 21 Luglio 2022, 11:31






My astrophotography gear is actually set up as follow:
Mount: Skywatcher EQM35 Pro Synscan goto
Scope: William Optics Redcat 51
Main camera: ZWO ASI1600MM-Cool pro
Guidescope: QHY miniscope 30/130
Guide camera: ZWO ASI 120mm mini
Filter Wheel: ZWO AFW 8×1,25? (LRGBHSO by Astronomic, 8th place actually empty)
Focuser: ZWO EF with ProAstroGear Blackcat adaptator (excellent!!!)
WiFi: ZWO WiFi Extender for ASIAIR Pro

Power

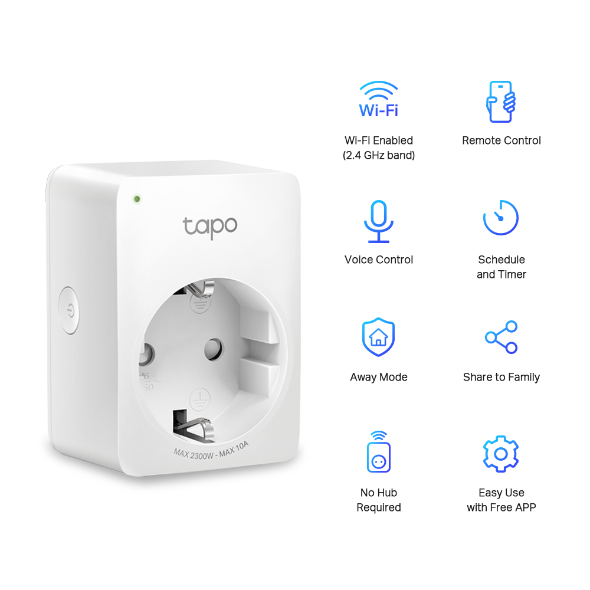

All astrophotography setup power is cabled to electric line by a TP-Link Tapo P100 mini Smart Wi-fi socket thus to start asiair pro and powering all astrophotography gear by remote control.



www.tp-link.com/it/home-networking/smart-plug/tapo-p100/

Between domestic line to Tapo Wi-Fi socket a Tecnoware UPS ERA PLUS 750 is placed to grant stability of electric line flux and proper protection against black-out.



https://www.amazon.it/Tecnoware-PLUS-Unit%C3%A0-Continuit%C3%A0-UPS-St

Asiair pro provides to supply main camera, EQM35 mount and wifi-extender.




ASIAIR pro USB3 ports get ASI 1600 main camera and 128gb USB stick.
Asiair pro USB2 ports get EFW and EQM35 plug.
ASI 1600 Main camera usb hub provides to supply asi 120 mini guide and asi focuser.




Wi-Fi lines
Home observatory Whireless line is provided by my domestic Huawei B311-211 Router 4g Wireless LTE with a standard (actually Iliad) sim.
ZWO wifi extender is set-up to extend Huawei Whireless line.



Asiair Pro is set up in station mode linking at Huawei wifi line.



Remote controlling
A domestic smart-tv Windows 10 mini pc Bmax B2 (128gb/8gb) is adapted for remote operation and ASIAIR pro controlling by running :

— VNC server for remote control

— Bluestacks Android simulator with asiair pro app installed

Other solution I've red and experimented, red and not experimented.
Some of them probably could better fit to remote controlling of ASIAIR pro “grounded” or not Astrophotography gear, especially Astroberry – from which I came , stellarmate or Primaluce system.
Moreover I'm not happy at all to had switched from an open source grounded systems to windowz stuff, but I sincerely admit that imo this is the most stable, regular and trustable system I have had under my hands.

Further development
I wish to implement further development as for instance

1) Remote controlled telescope dust-cover to be opened / closed on demand.
Best if provided of Flattener panel, thus to create optimized dark/flat calibration files for best performance in post-production.
Thinking about WO REDCAT 51 FLAP PANEL (FP1) by Deepskydad.com:
shop.deepskydad.com/product/wo-redcat-flap-panel-fp1/
[IMG][/IMG]


2) A better video surveillance and anti-thief system to be developed into my domestic security system.

3) Windowz mini pc formatting for at least an Ubuntu stable version
for 1. and 2.
I probably made operative again my Raspberry pi 4b and find money and time to do.
For 3. just waiting for Easter holidays or a long weekend grinning face

Hoped I helped or going to help someone.
Please forgive my bad English and feel free to share any suggestion, idea or opinion U may want.
Wishing everybody clear skies.

UPDATE June 2022
WO REDCAT 51 FLAP PANEL (FP1) by Deepskydad.com bought and applied on my Redcat, perfectly fitting and operating.
Connection by USB cable to old Raspberry/Astroberry server remote controlled by VNC client/server to open and close dust cover, setting heater and display luminosity for flat files recording.
It's the best product I strongly suggest!

Update July 2022
A couple of Tapo wifi camera setup I implemented to grant video-surveillance of my gear and checking-up all setup condition on balcony from remote.
